Sugar conveyor

MODELS AND INSTANT OUTPUTS

1T / HOUR

3T / HOUR

5T / HOUR

10T / HOUR*

*With degraded mode 5T/h

for maintenance/cleaning without production stop

Handling and elevation with flexible spiral technology up to 10 tons/hour

connected with emptying bag hopper, bulk bag discharger, silo, mixer, hopper on load cells...

The horizontal mechanical extractor control the output to

guarantee a continuous volume of product in the conveying tube

Specificities

No filters, no bearings

Soft mechanical effect preserving the product integrity

Confined process

4 standard models 1t/h - 3t/h - 5/ht - 10 t/h

Easy assembling kit to be adjusted directly on site

Possible emptying of the line with product collector in lower part

Ajustable angle

0° to 90°

Ajustable length

Horizontal extractor detail

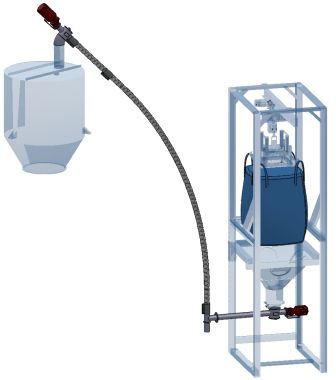

Example from bulk bags emptying station

to fill an intermediate hopper

The SCC mechanical flexible conveyor is specially designed for elevating and conveying crystal sugar from one point to another. Very adaptable, it can easily be connected downstream and upstream of the line with all machines or storage units.

Our tubes are made of preformed stainless steel AISI304L and 316L. Special coupling and supporting collars are used for perfect fitting on site.

The mechanical flexible reinforced spiral generates by its rotation an helicoidal effect of the product inside the tube which permits the transfer without friction. The models we propose can reach an instant output from 3 000 to 10 000 kilograms / hour, in horizontal transfer or with an inclination from 0 to 90°. The possible curves are from 3 to 6 meters radius following models and on site implantation.
