MODELS AND INSTANT OUTPUTS

1T / HOUR

3T / HOUR

5T / HOUR

10T / HOUR*

*With degraded mode 5T/h

for maintenance/cleaning without production stop

Anti-bridging extraction from silo and conveying with flexible mechanical technology

up to 10 tons / hour

Specificities

No filters, no bearings

Soft mechanical effect preserving the product integrity

Confined process

4 standard models 1t/h - 3t/h - 5t/h - 10 t/h

Easy assembling kit to be adjusted directly on site

Possible emptying of the line with product collector in lower part

The mechanical flexible conveyor SSU series is specially designed with integrated mechanical silo unloader, anti-bridging and extraction for elevating and conveying crystal sugar from one point to another. It can be connected beneath your cylindro-conical silos from 20 tons to 100 tons.

Our tubes are made of preformed adjustable stainless steel AISI304L and 316L, for a perfect adjustment on site, with adapted coupling and supporting collar.

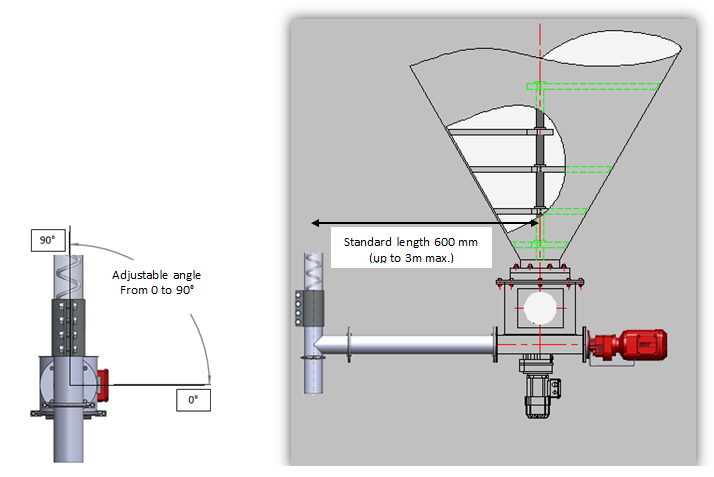

The mechanical flexible reinforced spiral generates by its rotation an helicoidal effect of the product inside the tube which permits the transfer without friction. The models we propose can reach an instant output from 3 000 to 10 000 kilograms / hour, in horizontal transfer or with an inclination from 0 to 90°. The possible curves are from 3 to 6 meters radius following models and on site implantation.
